These are plots of several climate variables vs. the planet power input (the post albedo incident power). The different variables plotted against PI are,

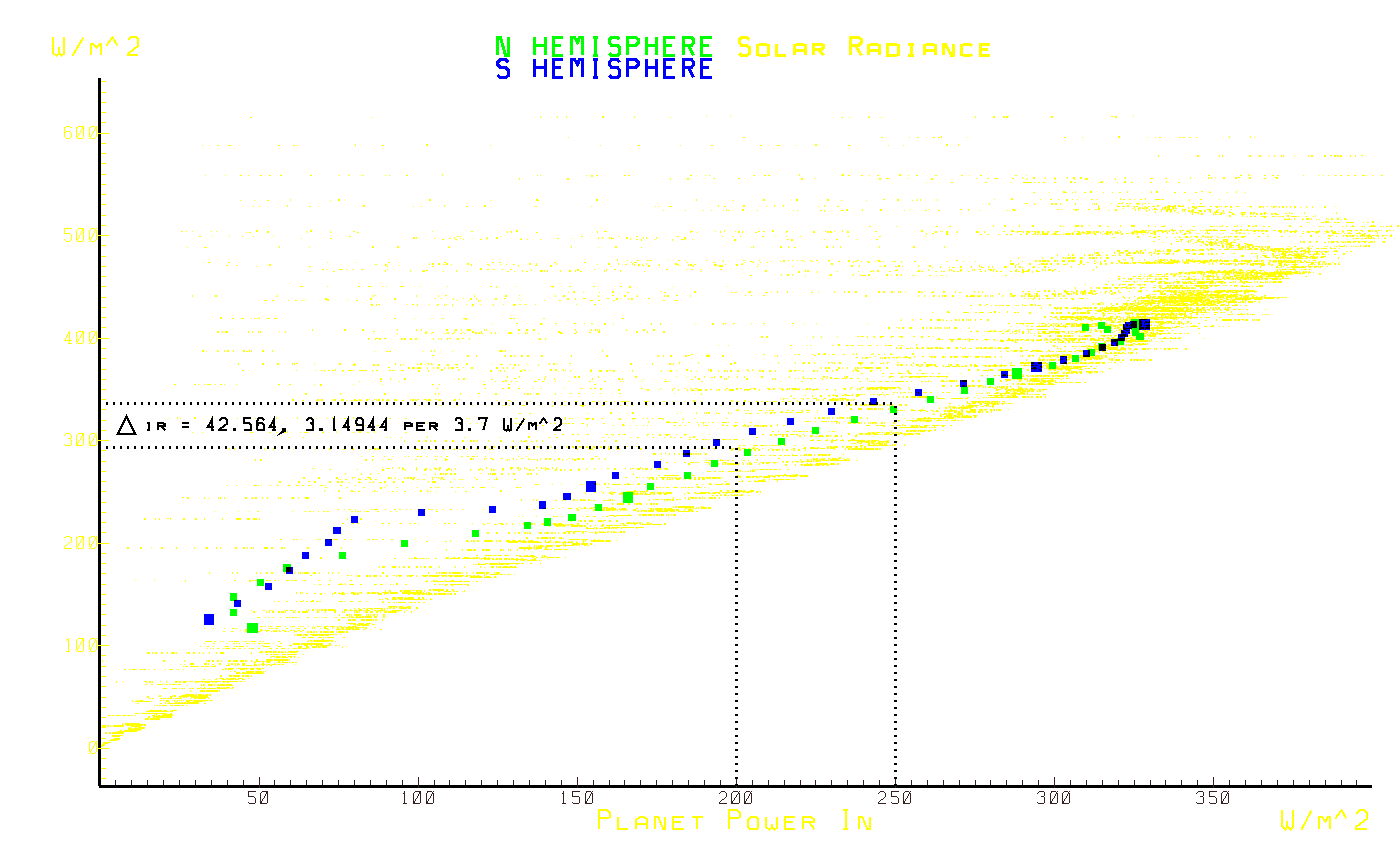

solar power in vs. planet power in
surface fraction covered by clouds vs. planet power in

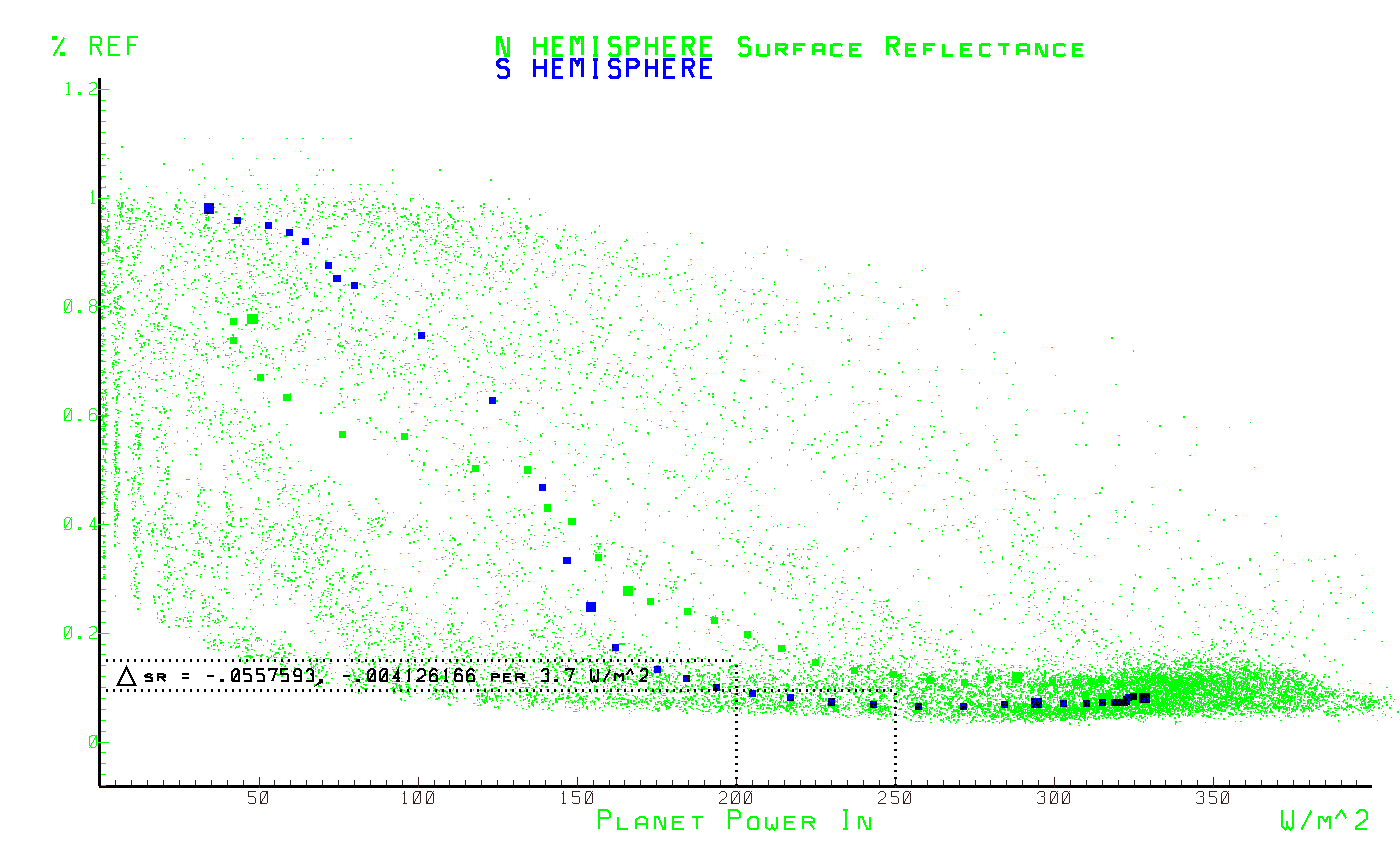

surface reflectivity vs. planet power in
ice amount vs. planet power in

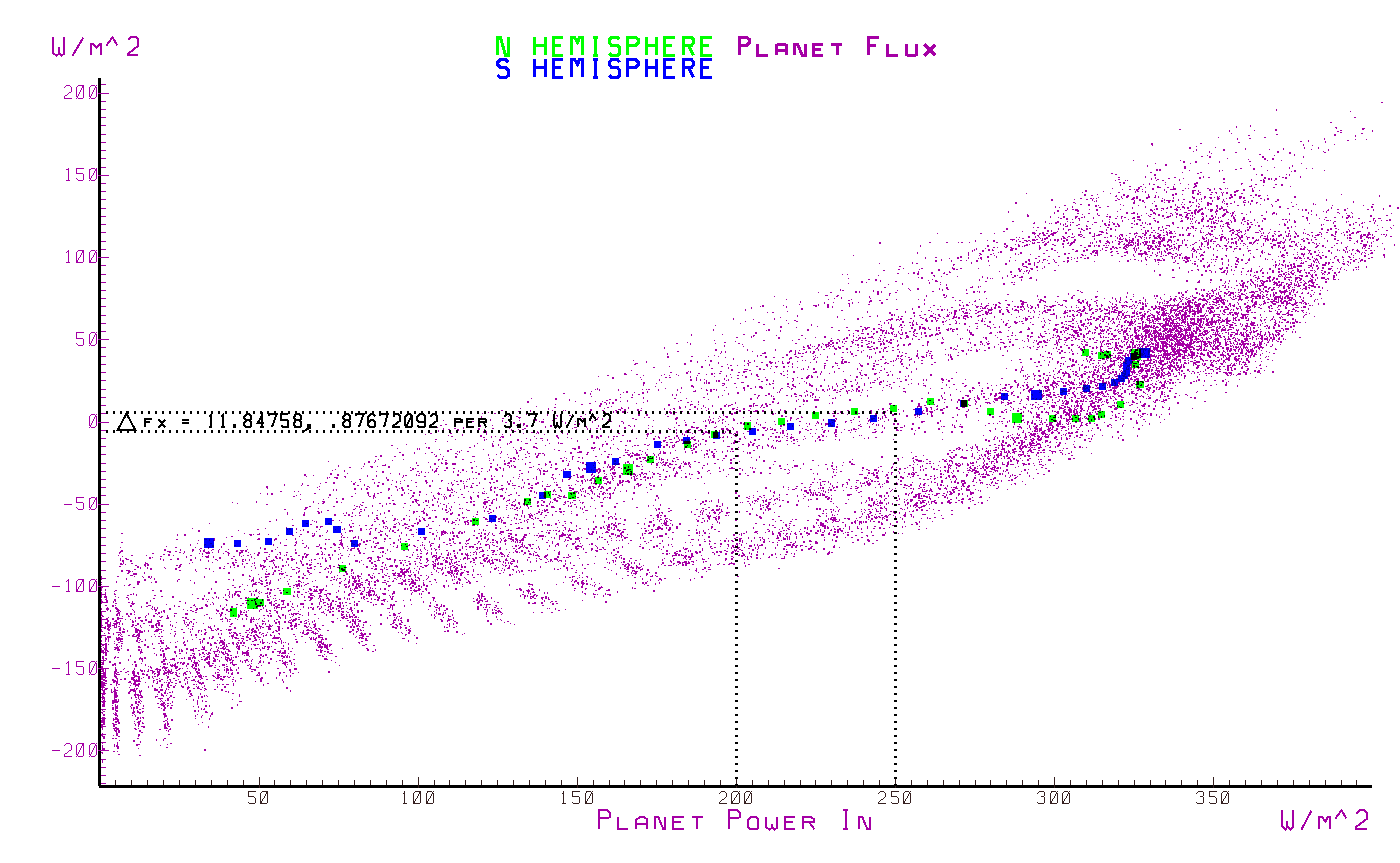

planet power out vs. planet power in
sensible heat vs. planet power in
surface gain vs. planet power in

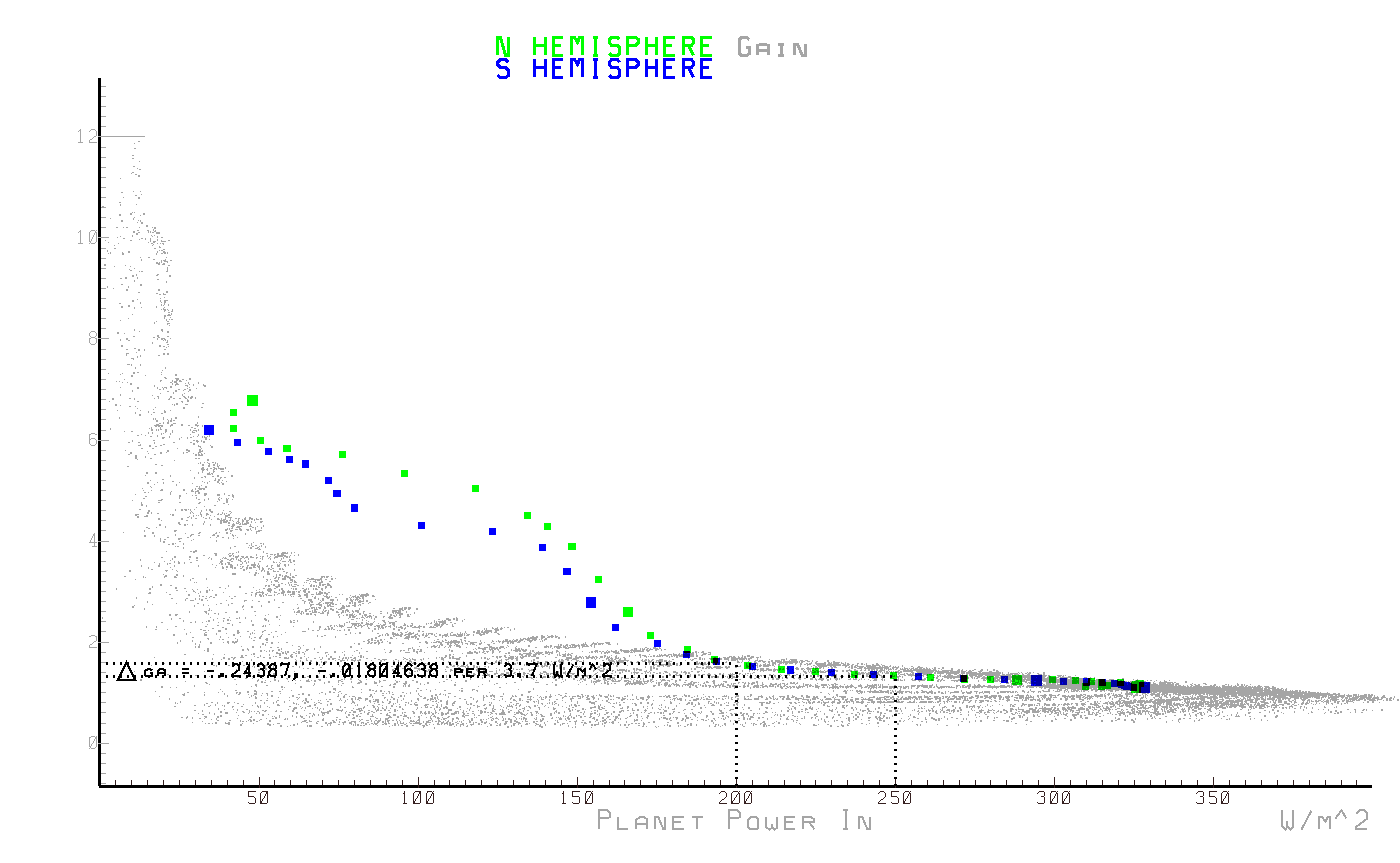

system gain vs. planet power in
surface temperature vs. planet power in ******** Forcing as defined by the IPCC ********

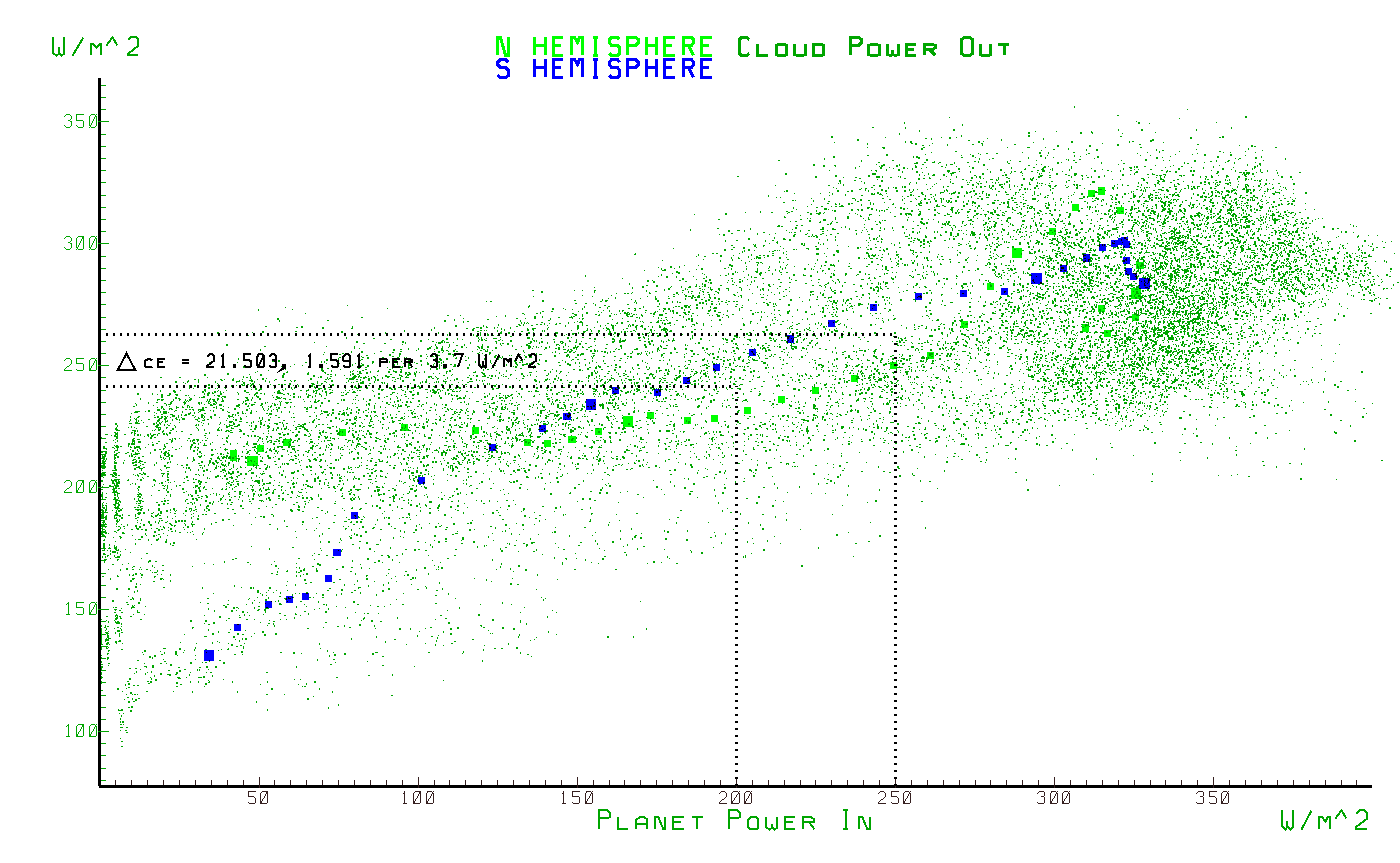

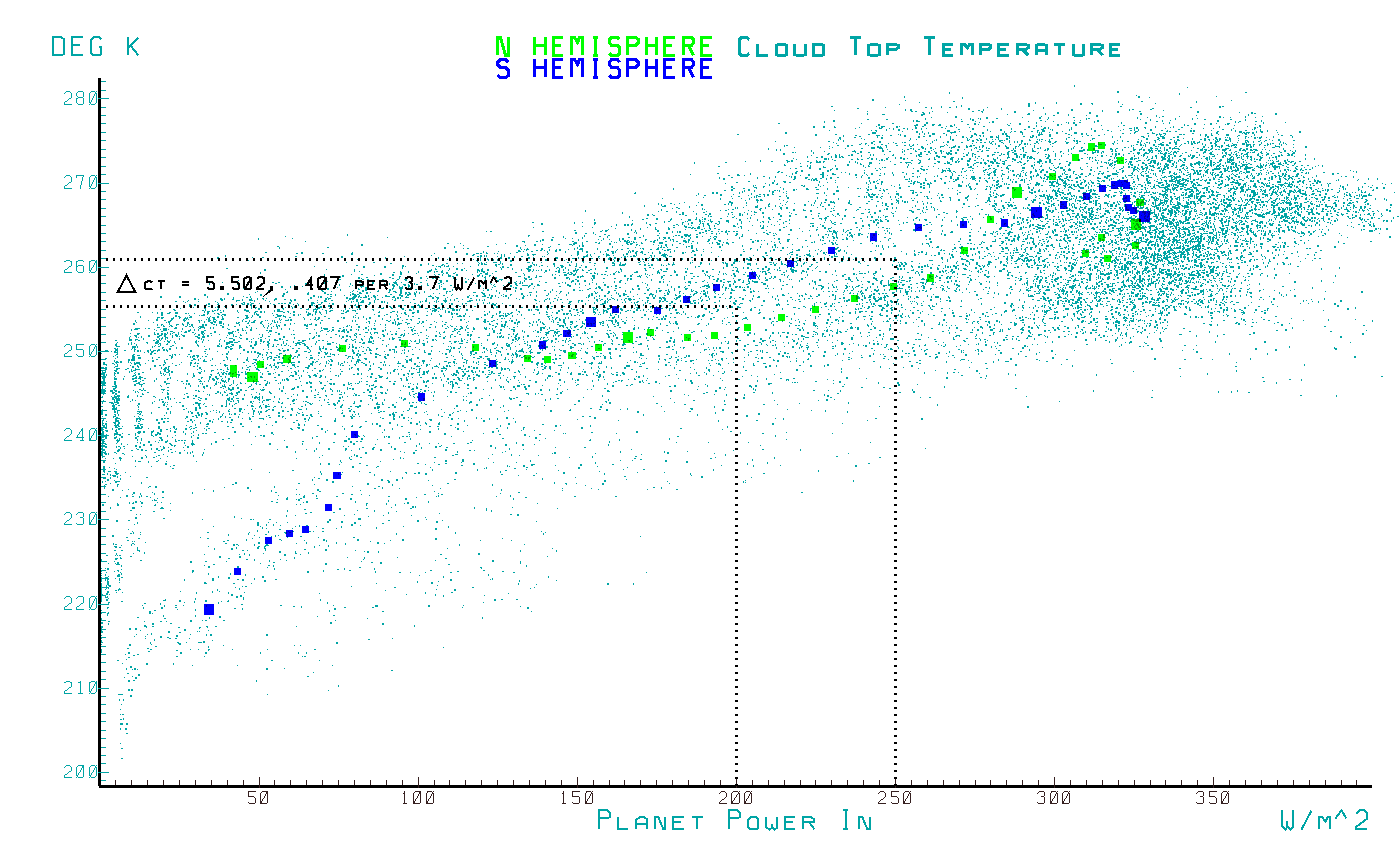

cloud temperature vs. planet power in
water column vs. planet power in
